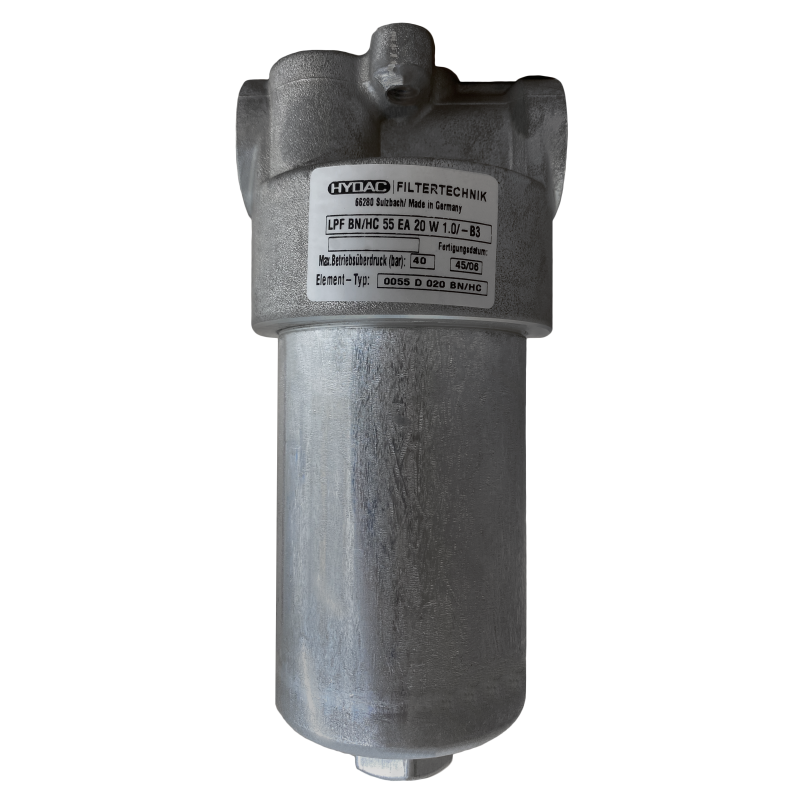

FILTER SPECIFICATIONS

 Nominal pressure                                              LPF 35, 55 : 40 bar

                                                                        LPF 160, 240, 260, 280 : 50 bar

 Fatigue strength                                               at nominal pressure 106 load cycles

                                                                        from 0 to nominal pressure

 LPF 35 and 55 : 107 load cycles at 40 bar

 Temperature range                                           -30 °C to +100 °C

 Material of filter head                                        Aluminium

 Material of filter bowl                                        Aluminium

 Type of indicator                                               VM (Diff. Pressure Indicator

                                                                        up to 210 bar operating pressure)

                                                                        VL (Diff. Pressure indicator

                                                                        up to 40 bar operating pressure -

                                                                        only BF indicator)

 Pressure setting of clogging indicator                 5 bar (others on request)

 Bypass cracking pressure (optional)                   6 bar (LPF 160 - 280)

                                                                       7 bar (LPF 35 - 55)

                                                                       others on request
